10 Gallon Pfaudler Glass Lined Reactor, XP Motor

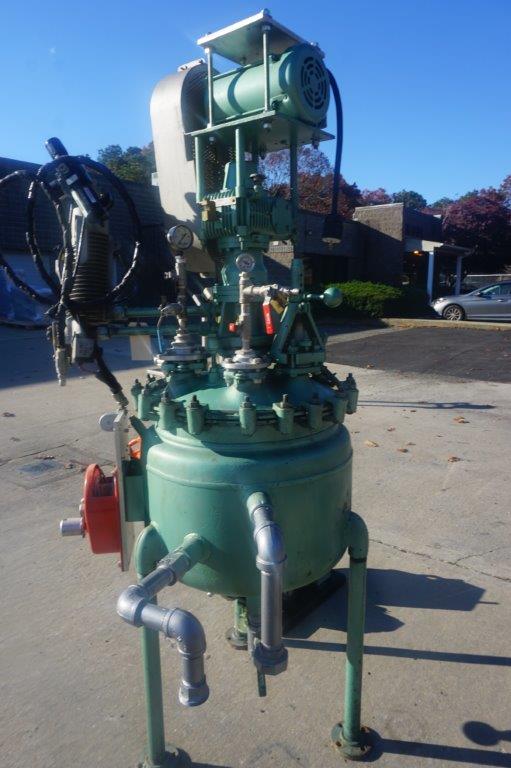

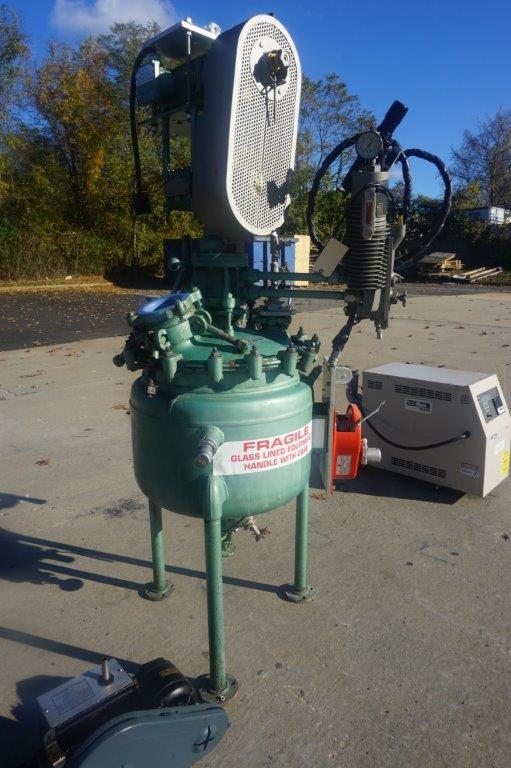

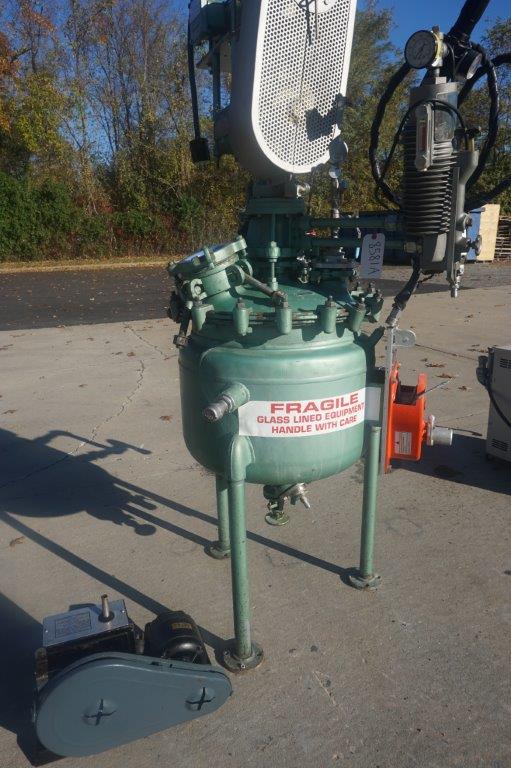

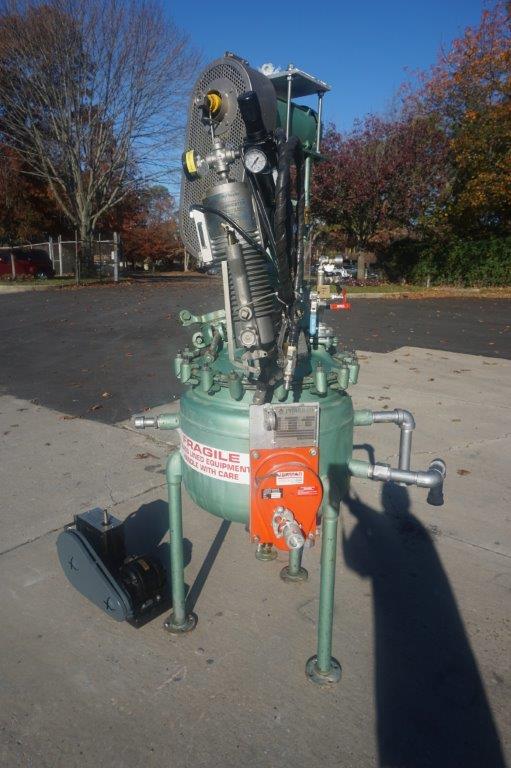

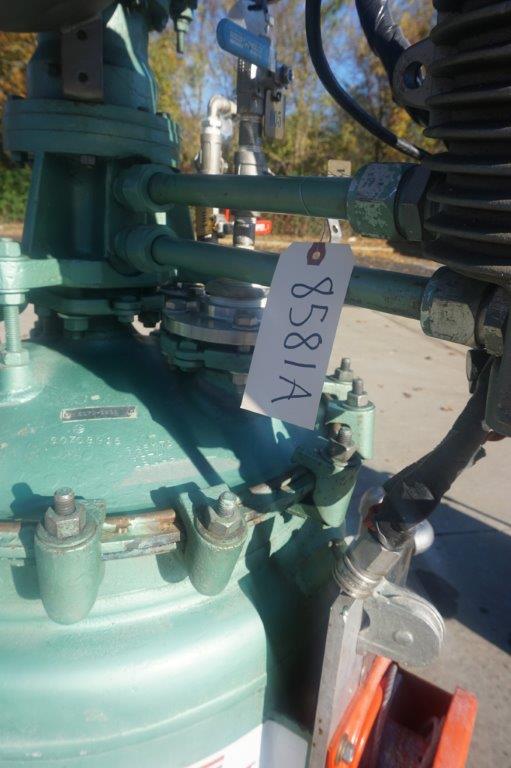

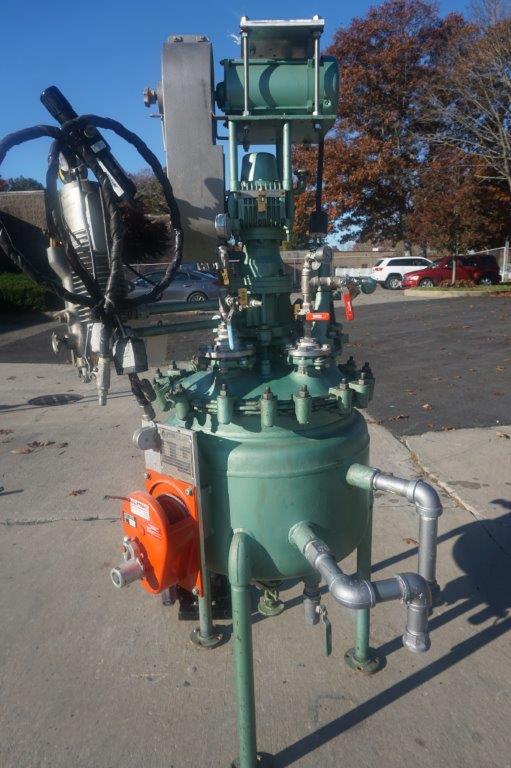

1 – Used Pfaudler Approx. 10 Gallon Glass Lined Jacketed Vacuum Reactor, S/N E170-1232. Reactor is rated 30 PSI at 650 degrees F and Jacketed for 115 PSI at 350 degrees F (Jacket Rating is 100 PSI if utilizing full vacuum as well), National Board number 29381. Interior vessel dimensions approx. 20 In. diameter X 15 In. on straight side, plus dished bottom head and bolted top head. Equipped with glass impeller and baffle, there are three top inlets. Agitation driven by 2 HP 3 phase, 60 cycle, 208-230/460 volt, explosion proof motor and gear box. Equipped with bottom discharge, reactor is supplied with Welch Vacuum Pump. Can be supplied with application enginering, heating unit at an additional cost. (Stock #8581A)
